1. On your desktop, right click on an empty space. Go to “New” and click “Folder”. A folder will appear with highlighted blue text. Type in the patient name and push “Enter” on your keyboard.
![New_Folder](https://implantcleanup.wpengine.com/wp-content/uploads/2016/12/New_Folder.png)

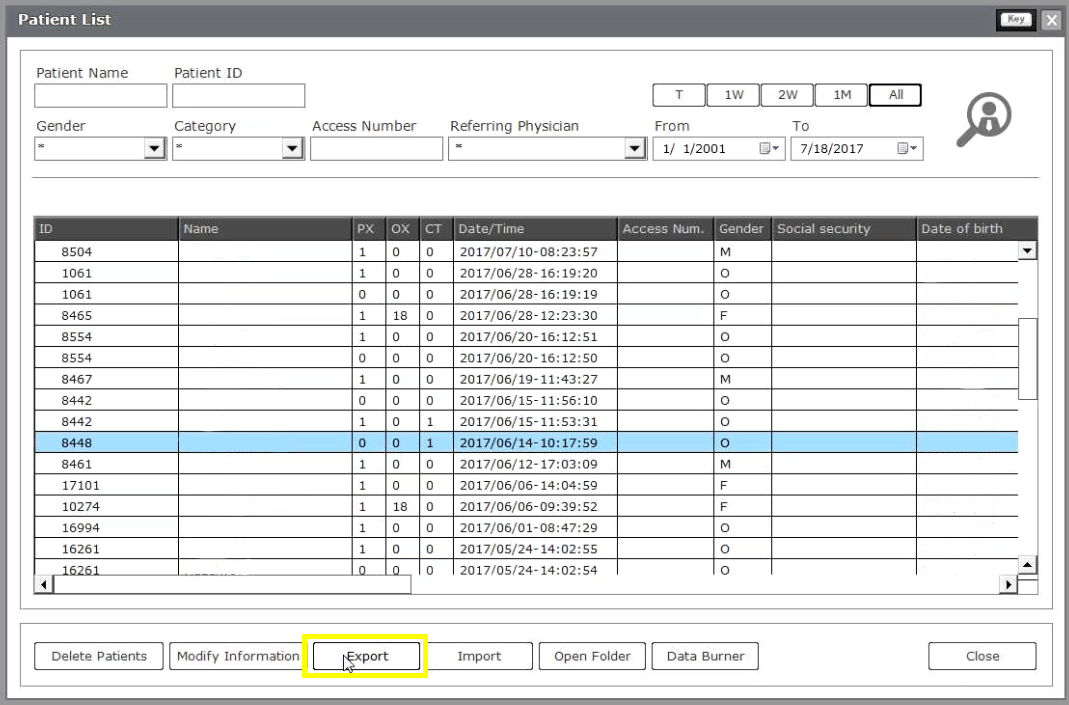

2. Select the patient in the database and click “Export”.
![](https://implantcleanup.wpengine.com/wp-content/uploads/2017/07/export-1.png)

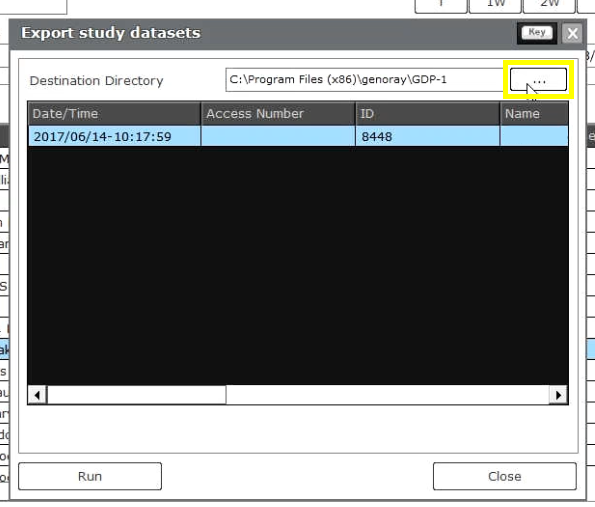

3. Select the scan and click the button “. . .” and a pop up will appear for the save location. Select the folder we just made on the desktop and click “OK”.
![](https://implantcleanup.wpengine.com/wp-content/uploads/2017/07/select-1.png)
![](https://implantcleanup.wpengine.com/wp-content/uploads/2016/09/CS8100-3.png)
4. The pop up will disappear. Verify you have the correct folder selected and click “Run”. A bar will begin loading.
![](https://implantcleanup.wpengine.com/wp-content/uploads/2017/07/Run-1.png)
![](https://implantcleanup.wpengine.com/wp-content/uploads/2017/07/loading-1.png)
5. After the DICOM exports and saves, go to the patients’ folder and double click to open. Double click on the study.
![](https://implantcleanup.wpengine.com/wp-content/uploads/2017/07/study.png)

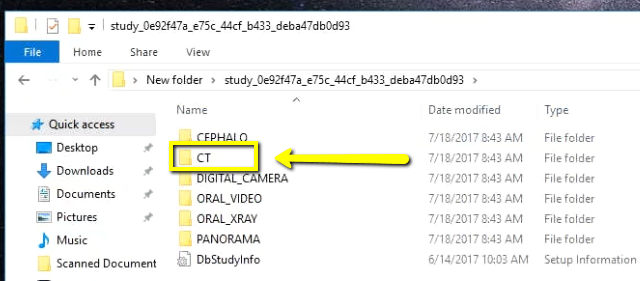

Double click on “CT”.
![](https://implantcleanup.wpengine.com/wp-content/uploads/2017/07/CT.png)
Double click on the “CT_Jaw” folder.
![](https://implantcleanup.wpengine.com/wp-content/uploads/2017/07/jaw.png)
Double click on “Slice Data”. This folder should contain the multi-file DICOM.
![](https://implantcleanup.wpengine.com/wp-content/uploads/2016/10/DCM.png)
6. Drag the SliceData folder to the Desktop.
![](https://implantcleanup.wpengine.com/wp-content/uploads/2017/07/hold.png)
7. Right click on the patients folder, go to “Send to”, and select “Compressed (zipped) folder”. A duplicate folder will be made with either a zipper on it, or a blue “Z”. (*** If following a Dual Scan Protocol, please zip scans individually and label accordingly; i.e: “Patient Scan” and “Denture Scan” ***)
![](https://implantcleanup.wpengine.com/wp-content/uploads/2016/12/Zip_Folder.png)
8. To upload the compressed folder, login to Implant Concierge. Click on the patient’s name to open the case. Click on the red “Upload DICOM” button.
![](https://implantcleanup.wpengine.com/wp-content/uploads/2017/06/testbluename.png)
![](https://implantcleanup.wpengine.com/wp-content/uploads/2017/06/DICOM-2.png)
9. Drag and drop the folder from the desktop to Implant Concierge. The file will automatically begin uploading.
![](https://implantcleanup.wpengine.com/wp-content/uploads/2017/06/dragndrop-1.png)
![](https://implantcleanup.wpengine.com/wp-content/uploads/2017/06/Automatic.png)
10. Once the file reaches 100%, click the green “Complete” button.
![](https://implantcleanup.wpengine.com/wp-content/uploads/2017/06/100.png)
