Exporting from ICAT

Please follow these instructions if you are exporting from ICAT Software. If you are using an ICAT machine, but have TxStudio / Invivo software, please follow those instructions.

1.  On your desktop, right click on an empty space. Go to “New” and click “Folder”. A folder will appear with highlighted blue text. Type in the patient name and push “Enter” on your keyboard.

New_Folder

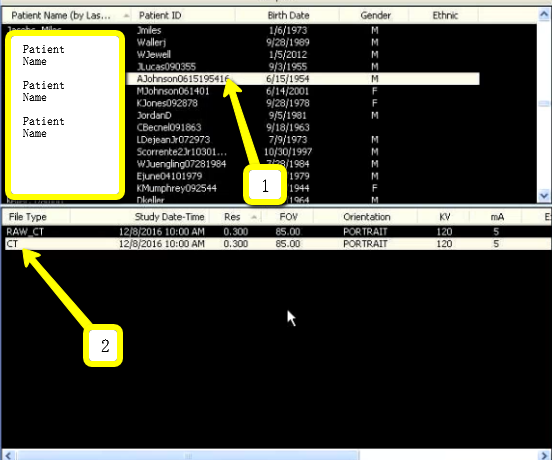

2.  In the patient database, click on the patient name. Under the “File Type”, click on “CT”.

Patient_Names

3.  A pop-up will appear. Click on the file, and click “Create New Workup”.

workup

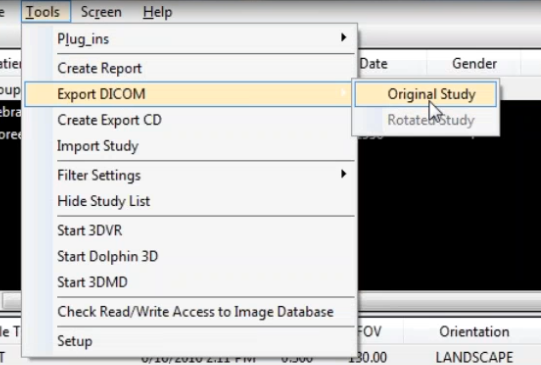

4.  The patient scans will load. In the upper left corner, click on “Tools”, “Export DICOM”, then “Original Study”.

ICAT CD 2

5.  Make sure “Multi-File DICOM” and “Uncompressed” are selected. Then click on “Browse” to choose the export location.

ICAT CD 3

6.  Select the folder you just created on the desktop and click “OK”.

Export Sirona tx 4

7.  You will return to this screen. Click “OK”. Your files will begin exporting.

ICAT CD 5

 8.  Click on “OK” when the “Done” pop up appears.

 ICAT CD 6

9.  After the DICOM exports and saves, go to the patients folder and verify the .dcm files were exported correctly; there should be several hundred files.

DCM

10.  Go back to the desktop, right click on the patients folder, go to “Send to”, and select “Compressed (zipped) folder”. A duplicate folder will be made with either a zipper on it, or a blue “Z”. (*** If following a Dual Scan Protocol, please zip scans individually and label accordingly;  i.e: “Patient Scan” and “Denture Scan” ***)

Zip_Folder

11.  To upload the compressed folder, login to Implant Concierge. Click on the patient’s name to open the case. Click on the red “Upload DICOM” button.

testbluename

 DICOM

12.  Drag and drop the folder from the desktop to Implant Concierge. The file will automatically begin uploading. dragndrop

Automatic

13.   Once the file reaches 100%,  click the green “Complete” button.

100

ATTENTION

Not all Implant Concierge services are available for all countries at this time.
